H-100 PEM Fuel Cell - 100W

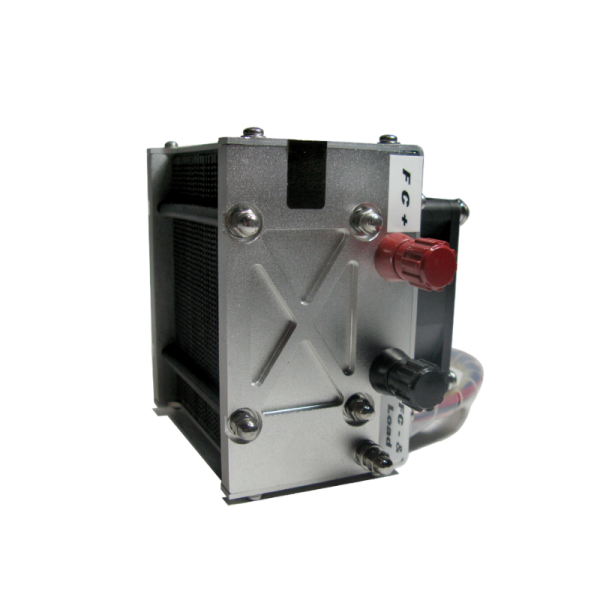

Fuel Cell Stack 100W
Additional Information
It is possible to purchase the H-100 without any supporting components. However, Horizon Educational recommends contacting us to build an easy-to-use bundle in order to facilitate integration of this fuel cell stack into your project. Click here to fill out a quote request form if you would like to create a complete package of fuel cell stack accessories that includes.
Fuel Cell Stack 100W Quick Product Facts
Number of Cells
This fuel cell stack is composed of 20 fuel cells.
Hydrogen Pressure
Hydrogen must be fed into the fuel cell stack at a pressure of 0.45-0.55 Bar.
Ambient Temperature
The fuel cell stack operates best in a temperature ranging from 41 to 86° F / 5-30° C.
Humidification
This fuel cell stack uses self-humidification.
FC Stack Weight
The stack (including fan and casing) weighs 3.14lbs / 1.5kg.
Controller Weight
The weight of the controller is .88lbs / 400g.
System Efficiency
At 72 volts the efficiency of the system is 40%.
External Power Supply
Proper operation of the stack requires an external power supply of 13 volts at 5 amperes.
H-100
Performance: 12V@8.3A
Hydrogen consumption at rated power: 1.3l/min.
Stack dimensions: 11.8 x 10.4 x 9.4cm
Controller dimensions: 13,4 x 7,5 x 3,9cm
List of H-100 components:
1 x 100W fuel cell stack (includes supply valve, purge valve, blower)
1 x controller (includes short circuit unit)
1 x silicon tube (OD 4 x ID 2mm), 50cm long
1 x silicon tube (OD 6 x ID 3mm), 50cm long
1 x filter
3 x screw M6
3 x nut M6
6 x washer
2 x outlet gas fitting (M5-4)
2 x inlet gas fitting (M5-6)
1 x LCD Display
