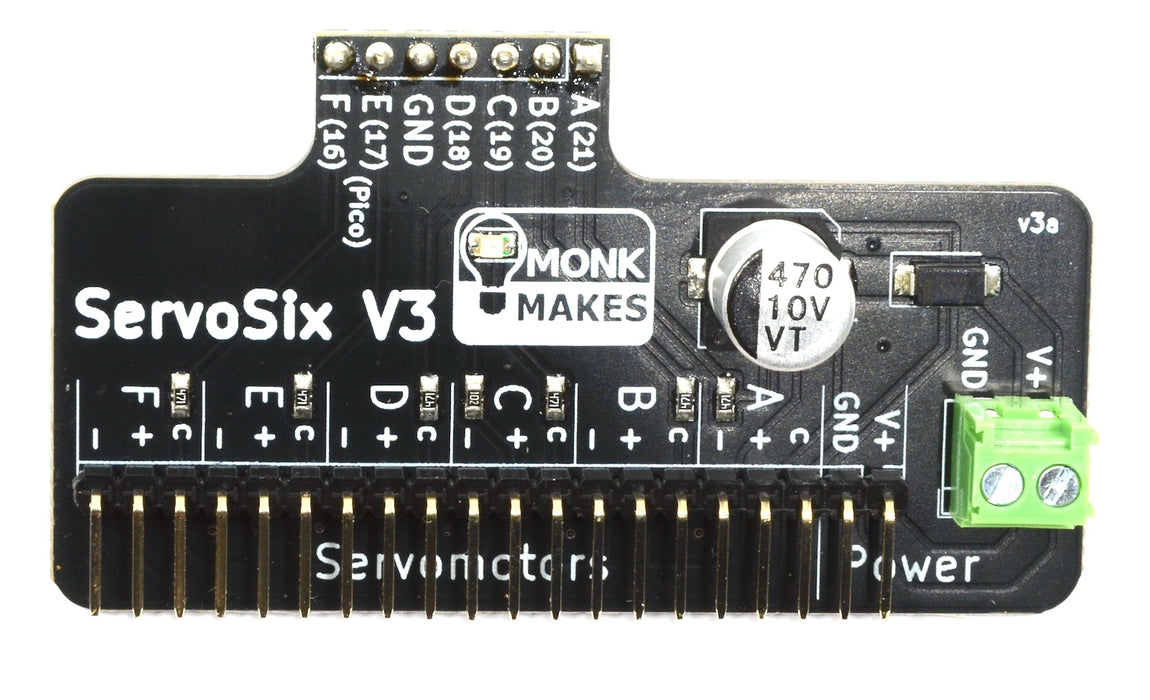

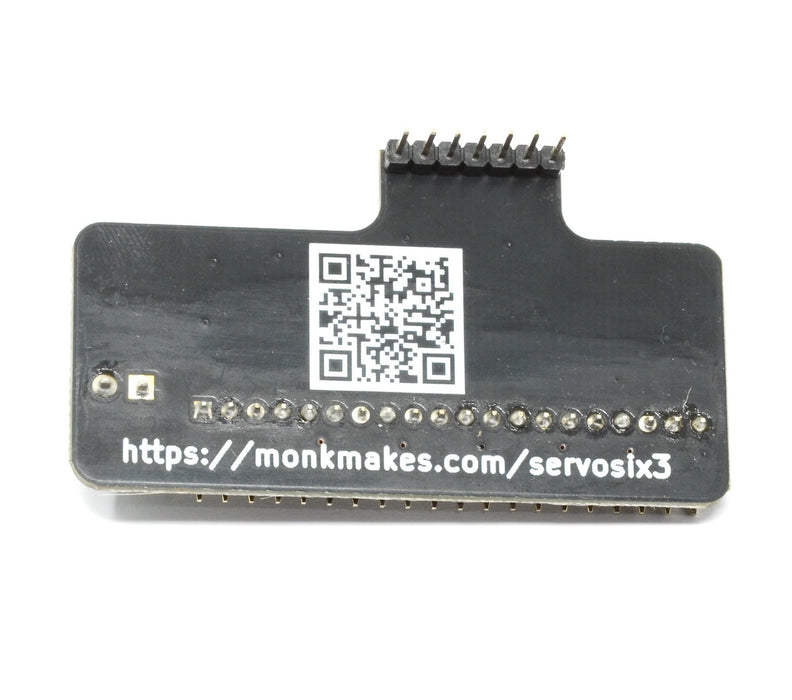

ServoSix V3

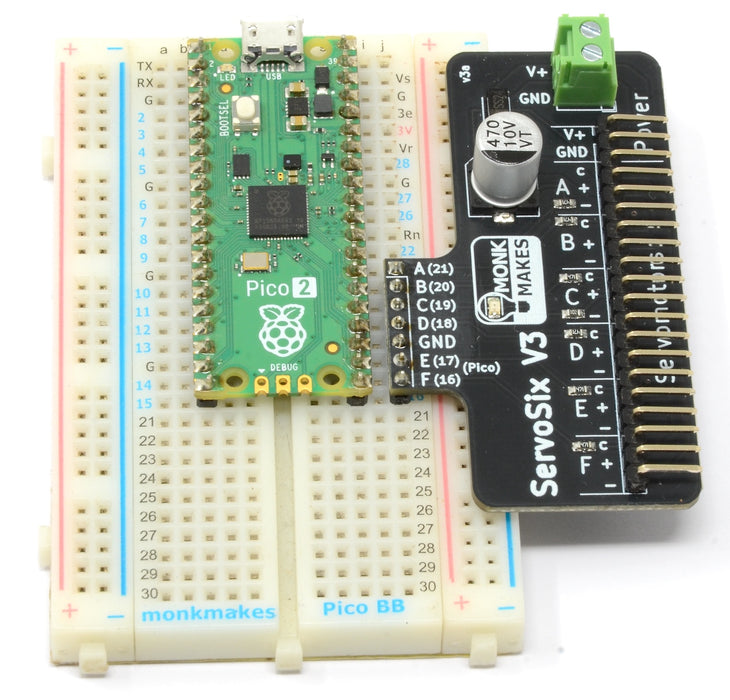

This board allows you to connect up to six servomotors to a microcontroller. Breadboard-friendly, the ServoSix V3 is perfect for the Raspberry Pi Pico, but also compatible with ESP32, Arduino etc.

Features:

• Screw terminals and header pins for servo power supply -- use either.
• Reverse-polarity protection for the servo power supply.
• Power indicator LED.
• Electrolytic reservoir capacitor for servo supply smoothing.
• Current limiting resistors for servo control lines (to protect GPIO pins)

Resources

Datasheet (PDF)

Instructions (PDF)

Product Images (ZIP)

For further help please email support@monkmakes.com
